[Android] SlidingMenu使用筆記

[Android] SlidingMenu使用筆記

說明:

Sliding Menu在手機的應用程式中是相當常見的設計，除了以前提到的

Navigation Drawer作法之外，還可以使用本文所提的Sliding Menu(jfeinstein10)的第三方資源來達成。

該資源提供豐富設定供開發者來使用，甚至有左右兩方的選單可以設定。

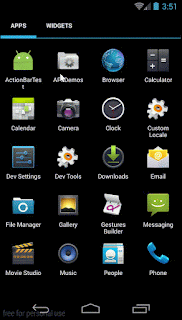

成果:

程式碼:

	package com.chengyu.actionbartest;
	import android.support.v7.app.AppCompatActivity;
	import android.os.Bundle;
	import android.view.Menu;
	import android.view.MenuItem;
	import com.jeremyfeinstein.slidingmenu.lib.SlidingMenu;
	public class ActionBarActivity extends AppCompatActivity {
	@Override
	public void onCreate(Bundle savedInstanceState) {
	super.onCreate(savedInstanceState);
	// slidingMenu settings
	slidingMenuSet();
	setContentView(R.layout.activity_action_bar);
	}
	private void slidingMenuSet() {
	setTitle("SlidingMenu");
	SlidingMenu menu = new SlidingMenu(this);
	menu.setMenu(R.layout.left_menu);
	menu.setMode(SlidingMenu.LEFT);
	menu.setTouchModeAbove(SlidingMenu.TOUCHMODE_FULLSCREEN);
	//menu.setShadowWidthRes(R.dimen.shadow_width);
	//menu.setShadowDrawable(R.drawable.shadow);
	menu.setBehindOffsetRes(R.dimen.slidingmenu_offset);
	menu.setFadeDegree(0.35f);
	menu.attachToActivity(this, SlidingMenu.SLIDING_WINDOW);
	getSupportActionBar().setDisplayHomeAsUpEnabled(true);
	getSupportActionBar().setHomeButtonEnabled(true);
	}
	@Override
	public boolean onCreateOptionsMenu(Menu menu) {
	// Inflate the menu; this adds items to the action bar if it is present.
	getMenuInflater().inflate(R.menu.menu_action_bar, menu);
	return true;
	}
	@Override
	public boolean onOptionsItemSelected(MenuItem item) {
	// Handle action bar item clicks here. The action bar will
	// automatically handle clicks on the Home/Up button, so long
	// as you specify a parent activity in AndroidManifest.xml.
	int id = item.getItemId();
	//noinspection SimplifiableIfStatement
	if (id == R.id.action_settings) {
	return true;
	}
	return super.onOptionsItemSelected(item);
	}
	}

view raw ActionBarActivity.java hosted with ❤ by GitHub

	<resources>
	<!-- Default screen margins, per the Android Design guidelines. -->
	<dimen name="activity_horizontal_margin">16dp</dimen>
	<dimen name="activity_vertical_margin">16dp</dimen>
	<dimen name="shadow_width">15dp</dimen>
	<dimen name="slidingmenu_offset">60dp</dimen>
	</resources>

view raw dimension.xml hosted with ❤ by GitHub

	<?xml version="1.0" encoding="utf-8"?>
	<LinearLayout
	xmlns:android="http://schemas.android.com/apk/res/android"
	xmlns:tools="http://schemas.android.com/tools"
	android:layout_width="match_parent"
	android:layout_height="match_parent"
	android:orientation="vertical"
	android:padding="30dp"
	android:background="#837e78">
	<TextView
	android:layout_width="wrap_content"
	android:layout_height="wrap_content"
	android:text="Left Menu" />
	<Button
	android:layout_width="match_parent"
	android:layout_height="wrap_content"
	android:text="button1" />
	<Button
	android:layout_width="match_parent"
	android:layout_height="wrap_content"
	android:text="button2" />
	<Button
	android:layout_width="match_parent"
	android:layout_height="wrap_content"
	android:text="button3" />
	</LinearLayout>

view raw left_menu.xml hosted with ❤ by GitHub

備註:

在project中需要導入第三方library。

有需要與時間的話，再來追加影片與說明。
